M-10000 Signature

Allnic Audio Launches the M-10000 Signature Monoblock Power Amplifier in 2025

In 2025, Allnic Audio unveiled its new monoblock power amplifier, the M-10000 Signature.

This amplifier is a complete redesign of the previous M-5000 “Titan” model, offering a dramatic upgrade in both performance and reliability.

With its refined design and commanding presence, the M-10000 Signature is Allnic’s true flagship power amplifier, capable of driving large speakers and filling large spaces with ease.

Utilizing Permalloy—a nickel-based alloy—as the core material, the M-10000 Signature delivers exceptional speed and wide bandwidth characteristics.

Thanks to its near-zero voltage regulation, the vacuum tubes operate under optimal conditions, enabling stable and precise amplification.

Key Specifications:

  • Each M-10000 Signature unit is equipped with eight KT170 output tubes per channel.

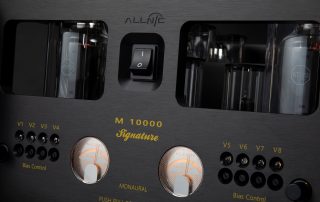

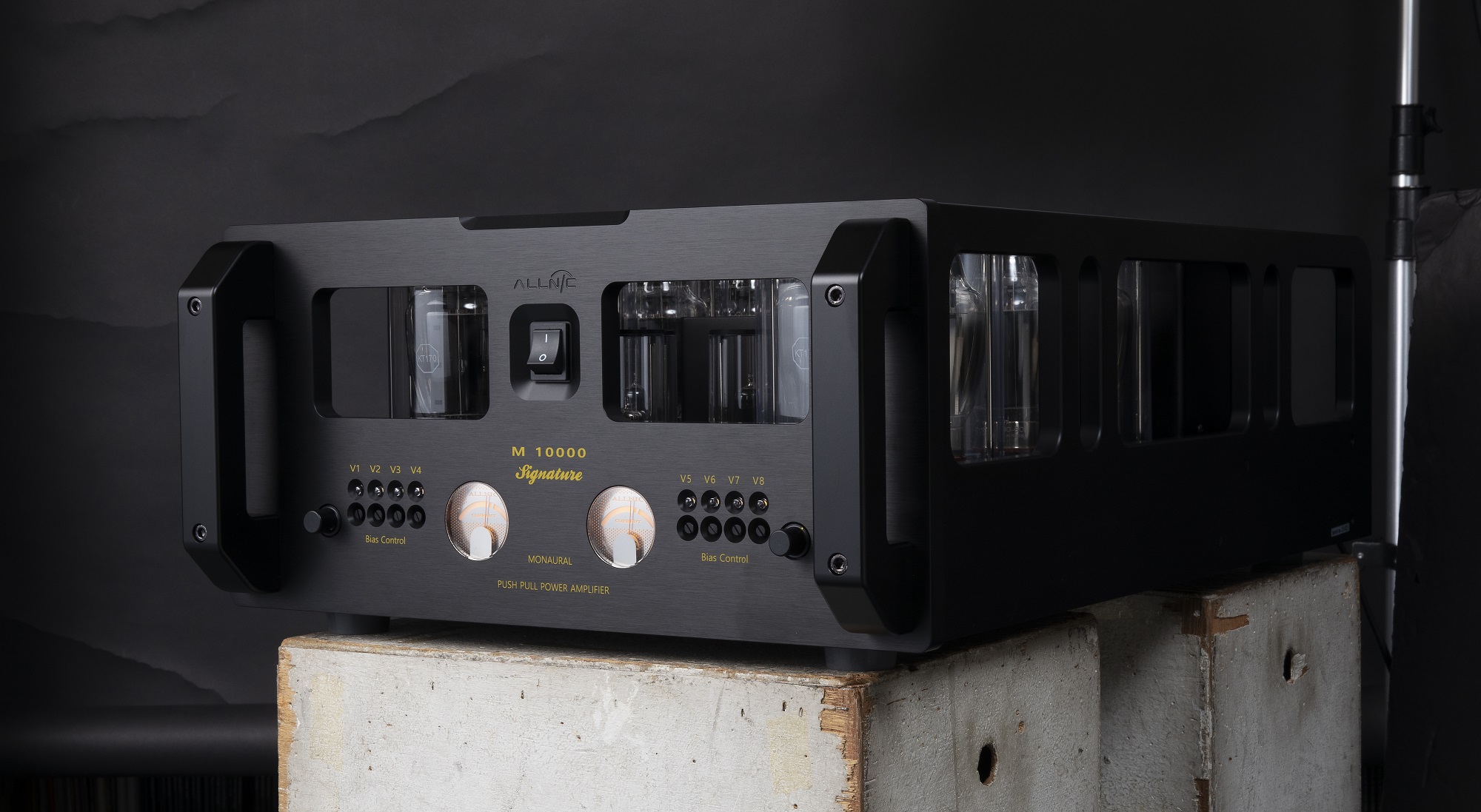

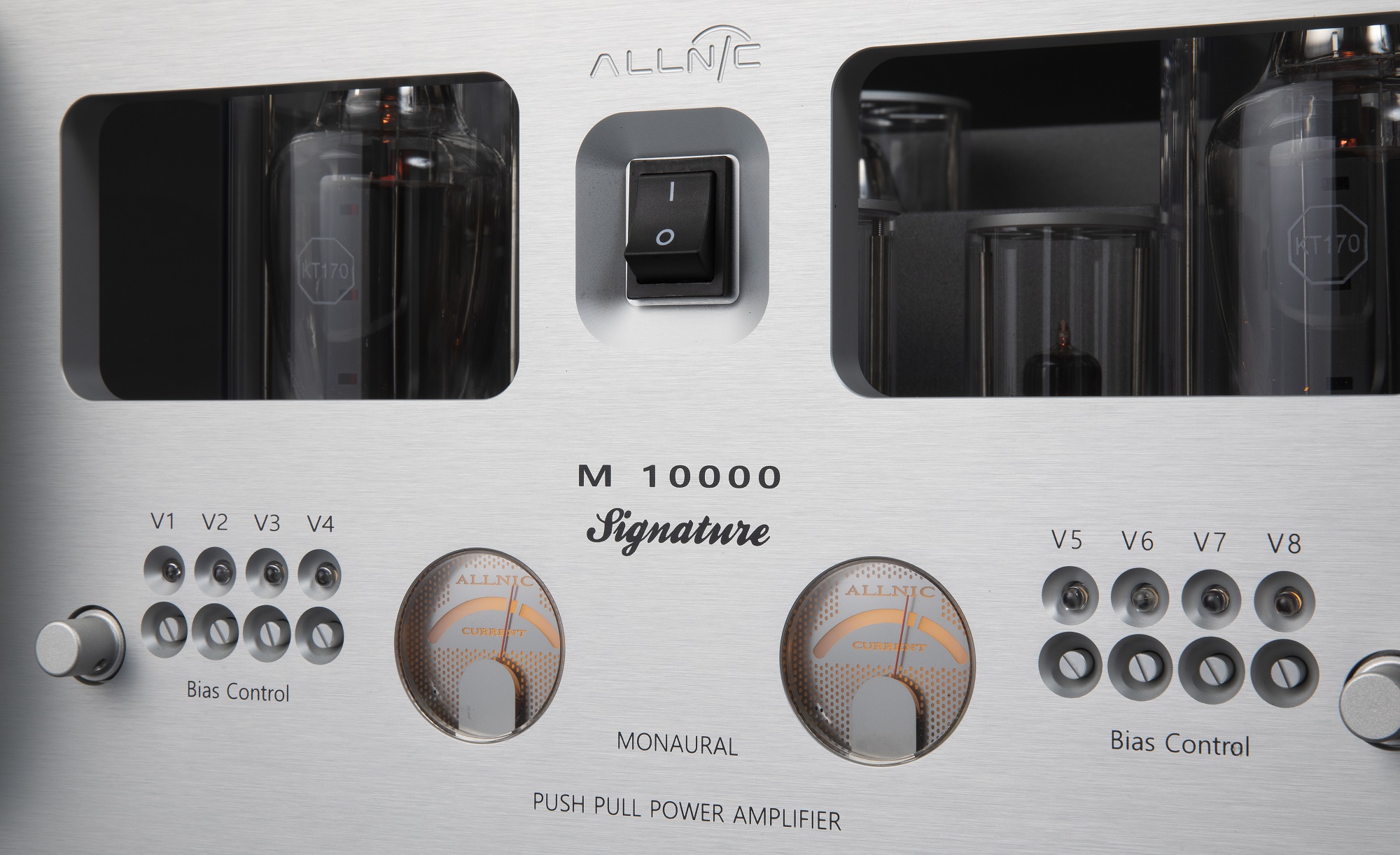

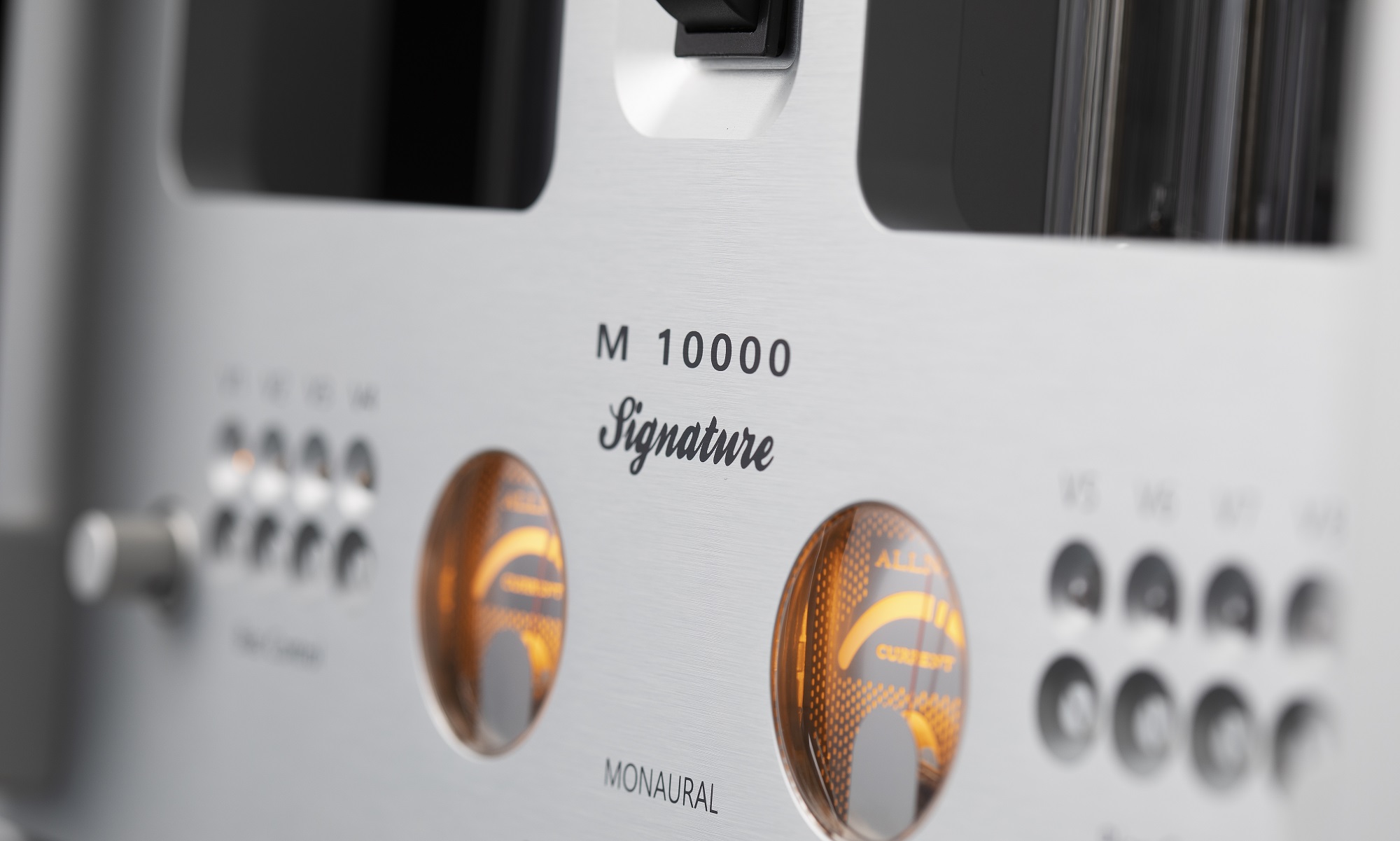

  • The front panel features a bias-setting meter and control knob.
  • Users can select output tubes V1 to V8 using the knob while monitoring levels through the front window’s level meter. This allows for easy adjustment of each tube’s potentiometer, ensuring optimal performance at all times.
  • This user-friendly interface also allows for convenient monitoring and replacement of tubes as needed.



카테고리:

설명

Allnic Audio Launches the M-10000 Signature Monoblock Power Amplifier in 2025

In 2025, Allnic Audio unveiled its new monoblock power amplifier, the M-10000 Signature.

This amplifier is a complete redesign of the previous M-5000 “Titan” model, offering a dramatic upgrade in both performance and reliability.

With its refined design and commanding presence, the M-10000 Signature is Allnic’s true flagship power amplifier, capable of driving large speakers and filling large spaces with ease.

Utilizing Permalloy—a nickel-based alloy—as the core material, the M-10000 Signature delivers exceptional speed and wide bandwidth characteristics.

Thanks to its near-zero voltage regulation, the vacuum tubes operate under optimal conditions, enabling stable and precise amplification.

Key Specifications:

  • Each M-10000 Signature unit is equipped with eight KT170 output tubes per channel.
  • The front panel features a bias-setting meter and control knob.
  • Users can select output tubes V1 to V8 using the knob while monitoring levels through the front window’s level meter. This allows for easy adjustment of each tube’s potentiometer, ensuring optimal performance at all times.
  • This user-friendly interface also allows for convenient monitoring and replacement of tubes as needed.

The KT170 beam tetrodes provide a stable and refined high-frequency response, while the 12A4 Drive triodes offer a high voltage gain.

The 5654W pentodes are known for their warm tonality and stable operation.

Despite delivering up to 500W of power, the M-10000 Signature maintains remarkable composure, with no sense of aggression or harshness.

Its high signal-to-noise ratio creates an ultra-quiet background and sharp imaging.

With over 120W of Class A operation, it produces rich textures and a dense yet airy sound.

The amplifier also delivers deep, authoritative bass, ample headroom, and vivid vocal imaging, making it ideal for all genres of music.

Allnic Audio has previously introduced high-end components such as the L-10000 Signature preamplifier, and the M-10000 Signature continues in this prestigious lineage.

As a pinnacle of Allnic’s engineering and sonic performance, it achieves extraordinary synergy when paired with the L-10000 Signature.

Technical Specification
Output Power 500W (8Ω load, at 1kHz)
Distortion 0.11% at 1kHz at 10W
Frequency Response 20Hz-20kHz Flat
S/N Ratio -80dB (CCIR, 1kHz)
Damping Factor 20 at 8Ω load at 1kHz
Voltage gain +28dB
Input Impedance 100kΩ (single-ended, unbalanced)
Input Sensitivity 2.0V for rated power
Fuses 10A, 230V, 20mm slow-blow (KT170’s); 15A, 120V, 20mm slow-blow (IEC Mains)
Tubes (per chassis) KT170x 8 (power tube); 12A4x 2 (second stage drivers); 5654x 1 (first stage driver)

If you want to experience Allnic Audio’s products,

please contact your local authorized dealers or

Audio Mentors, which is Allnic Audio’s design & marketing company.
